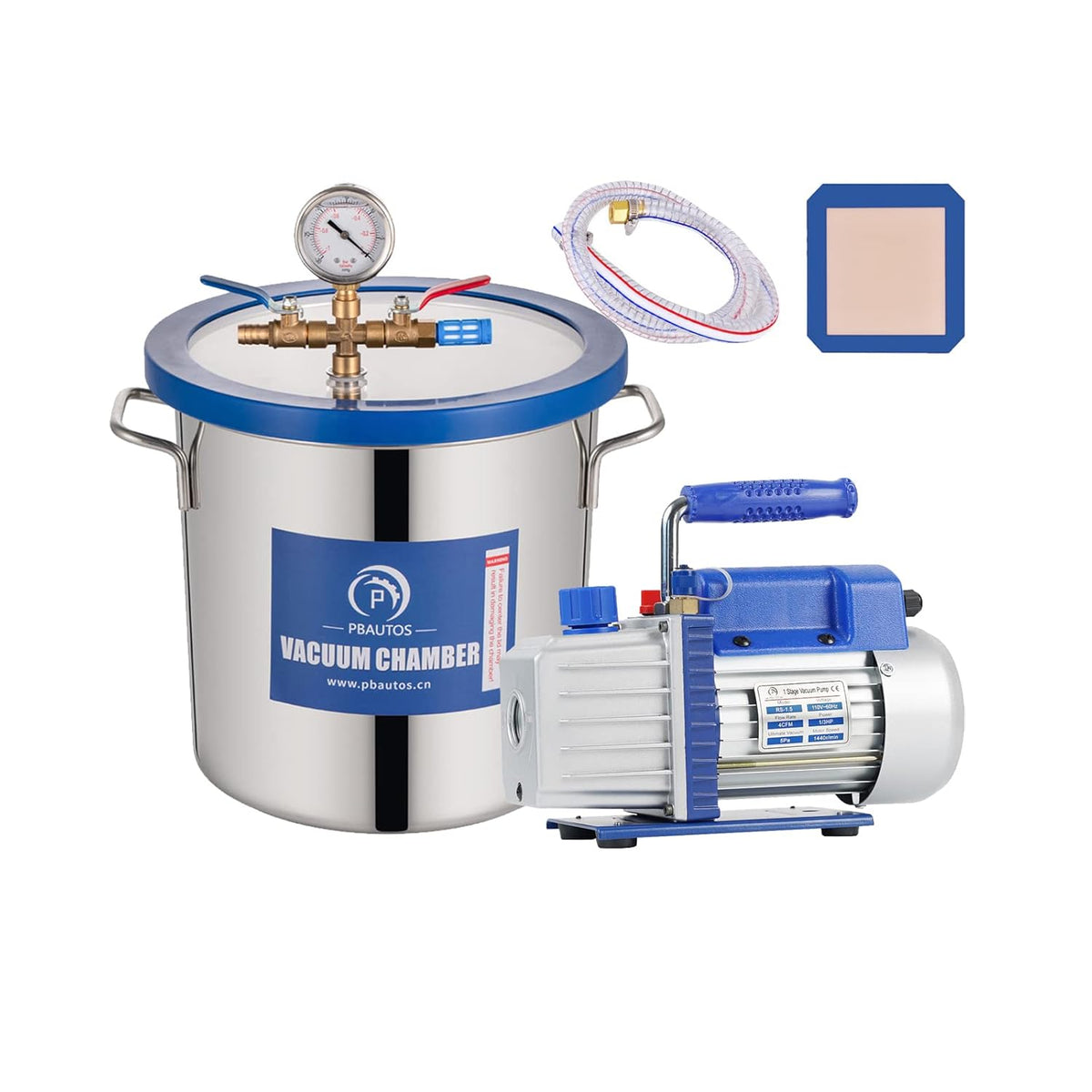

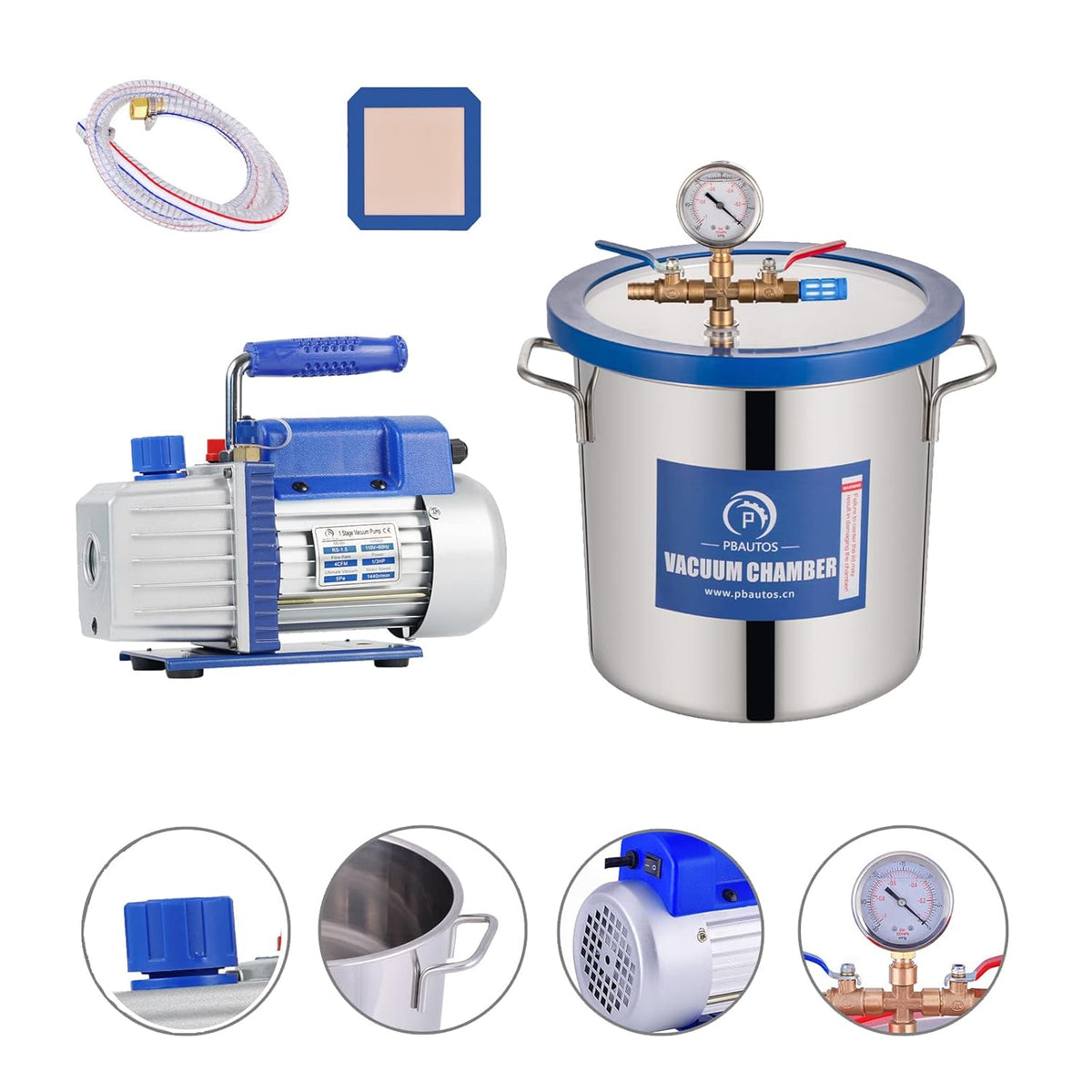

Name: 3 Gallon Stainless Steel Vacuum Chamber with 4CFM 1/3HP Single Stage Vacuum Pump T490
Brand: My Store
SKU: P353533344635559248
Price: 29.50 USD
Availability: InStock

3 Gallon Stainless Steel Vacuum Chamber with 4CFM 1/3HP Single Stage Vacuum Pump T490

$29.50 $98.40

Shipping calculated at checkout.

High Efficiency: 4CFM 1/3HP Single Stage Vacuum Pump, Direct Drive Motor is easy to start. Hydro-tested stainless steel container is in high strength, very durable and can withstand up to 160ºF. Heavy duty 3/5" shatter-resistant acrylic crystal lid is convenient for you to observe the interior state, and it is bulletproof.Low Noise and Easy Monitoring: The vacuum pump is equipped with 1 silencer to reduce motor vibration and equipment noise, so it can run quieter. and it comes with an oil viewing window so that you can easily monitor the oil level and quality, prevention of oil deficiency.Long Service Life: Intelligent radiator protects itself and prevents it from burning out when something is stuck. Built-in thermal protection can avoid burning the machine. And anti-skid rubber shock absorption and seismic resistance can extend the machine life.Good-quality accessories: Durable brass fittings fit all vacuum pump ports. 50 micron air filter reduces air flow back into the chamber for purging and prevents dust and debris from entering the chamber. 4.75" x 4.75" non-stick silicone gasket allows you to easily remove mixtures. Max vacuum rates to 29.9inHg at sea level.Wide Application: Our vaccum chamber kit can be perfectly equipped with single or dual stage 3 to 9 CFM pumps. Suitable for household air conditioning, automobile maintenance, vacuum packaging, refrigerator vacuum, Industry, etc.

*Attention:

Please read the use instructions carefully before using!

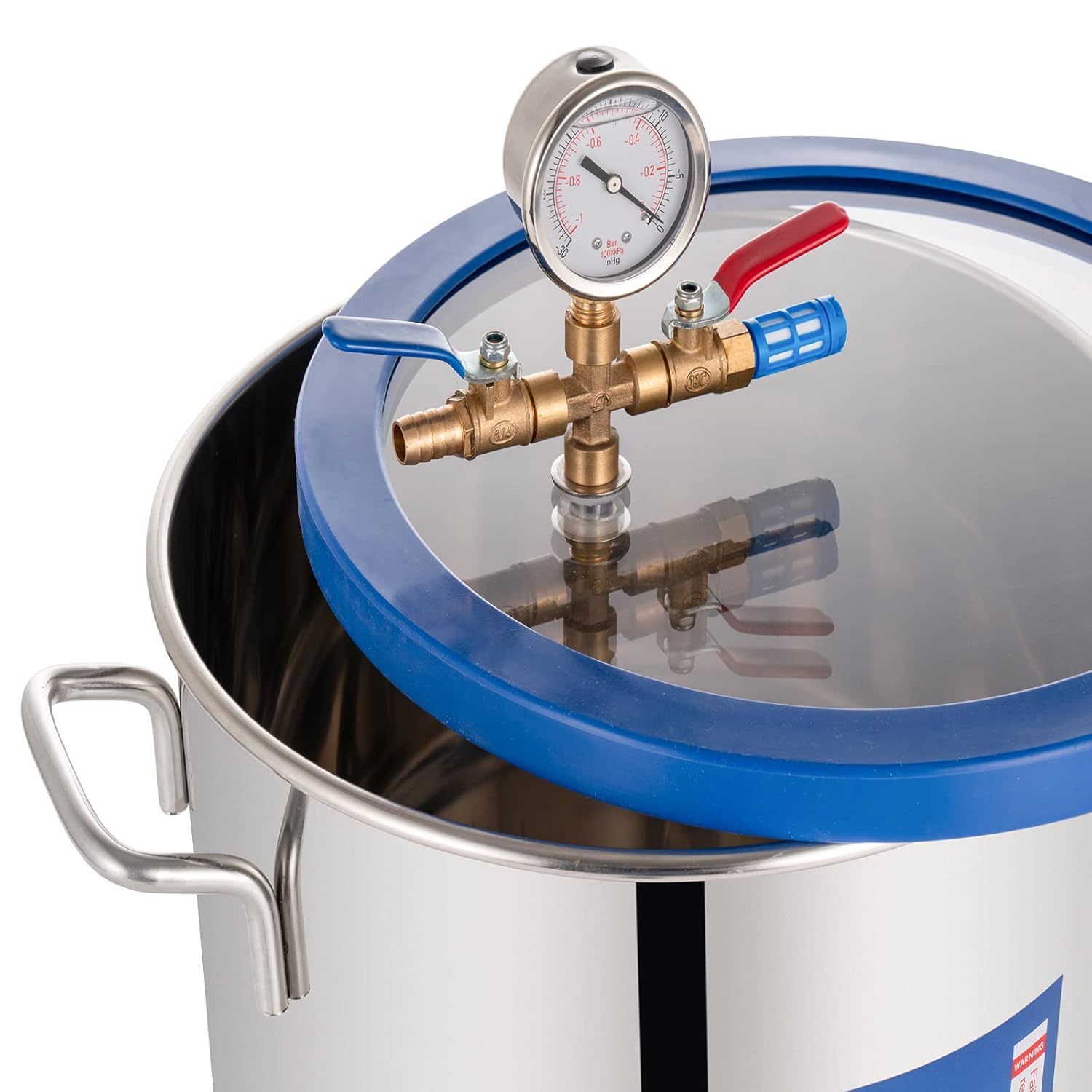

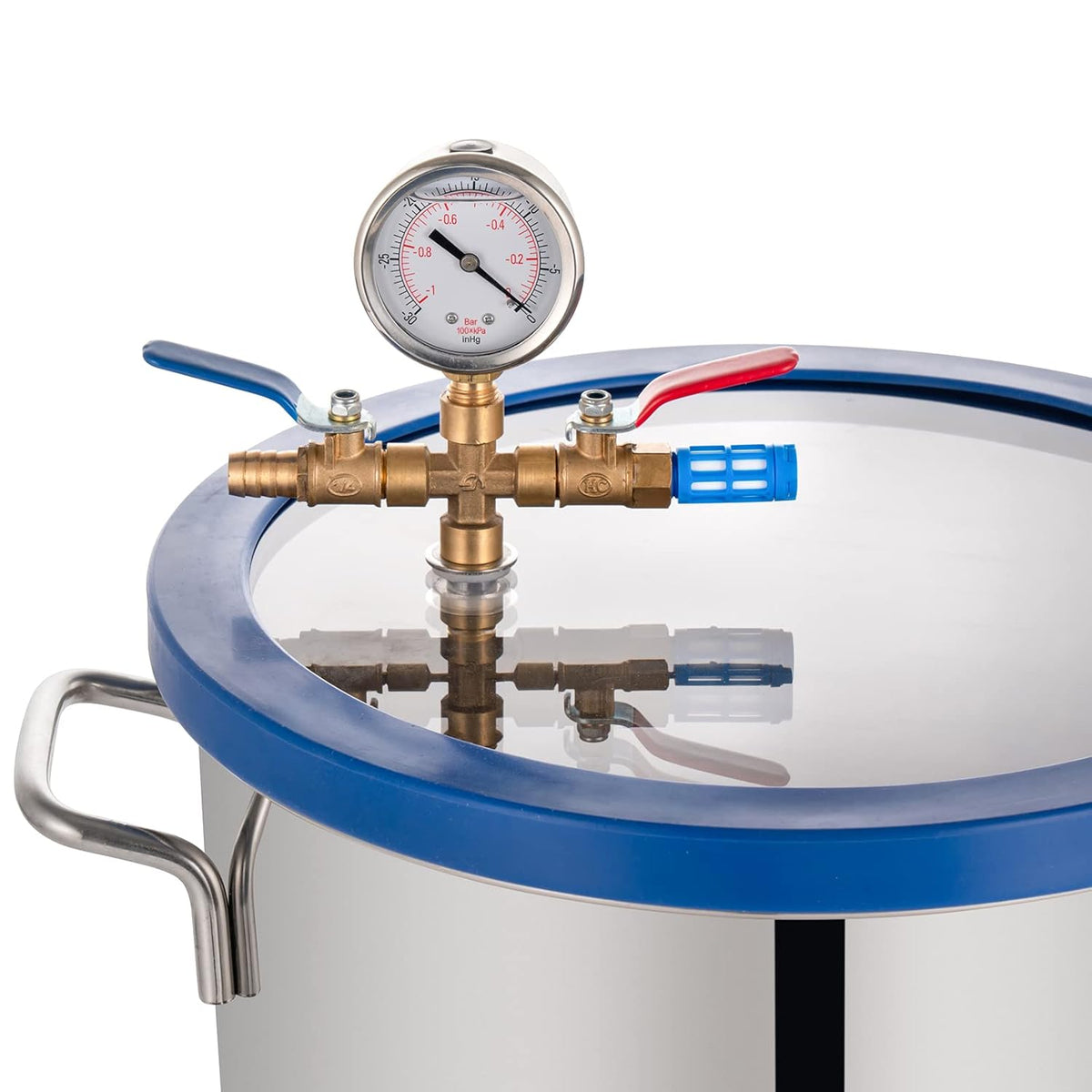

When covering the acrylic lid, please notice to put it in the right place without any deflection. If the lid inclines a little, the vacuum chamber may not hold vacuum, and the acrylic lid may be sucked into the chamber with pressure.

*Features:

1. High Efficiency & Noise Reduction Upgrade

2. Easy Monitoring & Intelligent Radiator

3. Internal High Volume Cooling Fan for Extended Use

4. Shock-Proof & Wear-Resistant Base

5. ON/OFF Switch

6. Long Service Life

*Cautions

1. Do not pump inflammable, explosive and poisonous gases

2. Do not pump gases which can corrode metals and can exert chemical changes with the pump oil

3. Do not pump gases containing pellet dust and gases with plenty of steam

4. The temperature of the pumped gas should not be over 80°C and the environment temperature should not be lower than 5°C-6°C

5. Do not use it as a compression or a convey pump

6. Do not use or operate without oil

7. Do not pull on the wire when unplugging from the outlet

8. Do not put heavy weights on the wire to avoid being extruded

9. Do not use when the plug or outlet is damaged

10. Do not plug or unplug with your wet hands

11. Unplug or switch off the machine when there is any kind of gas leakage

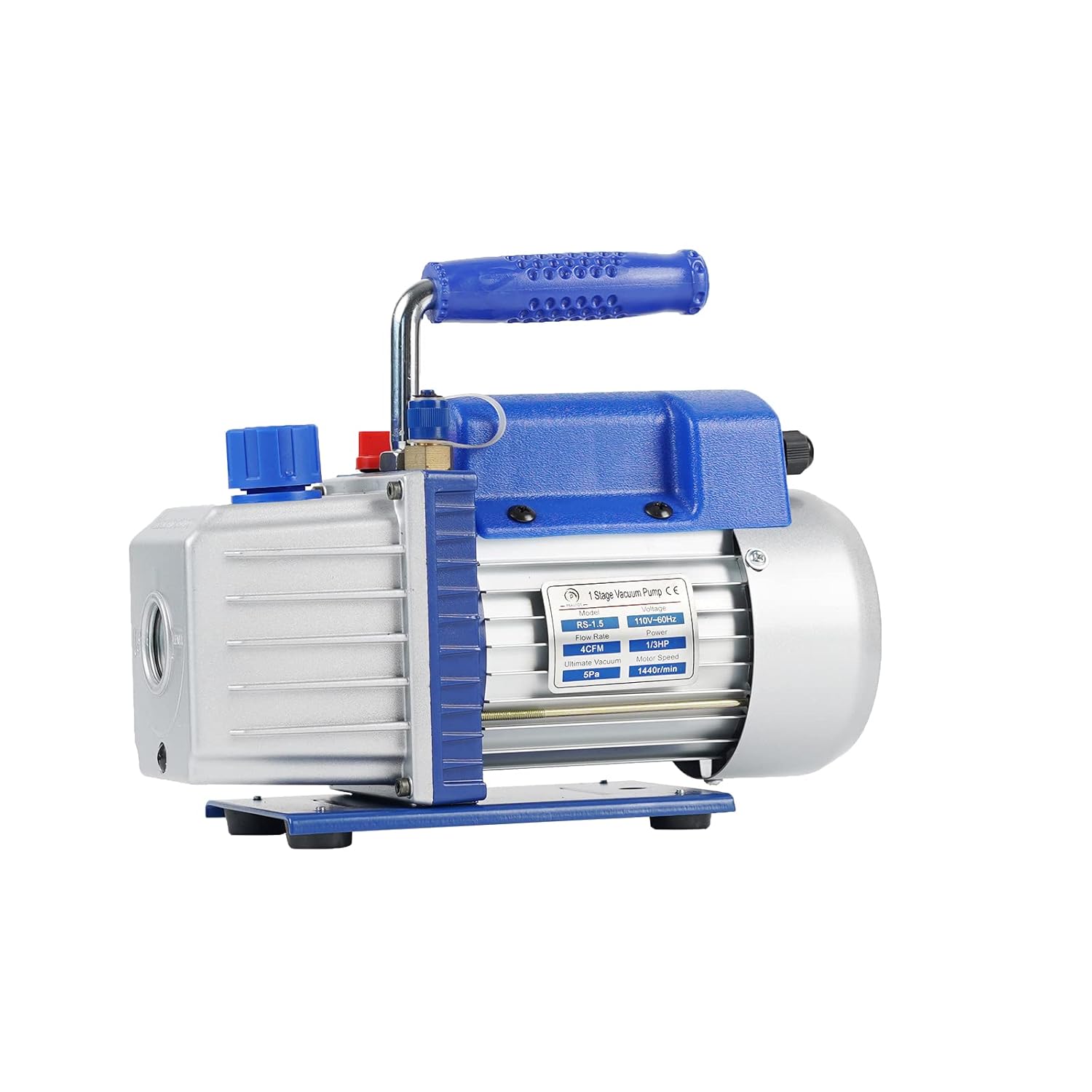

*Vacuum Pump Specification:

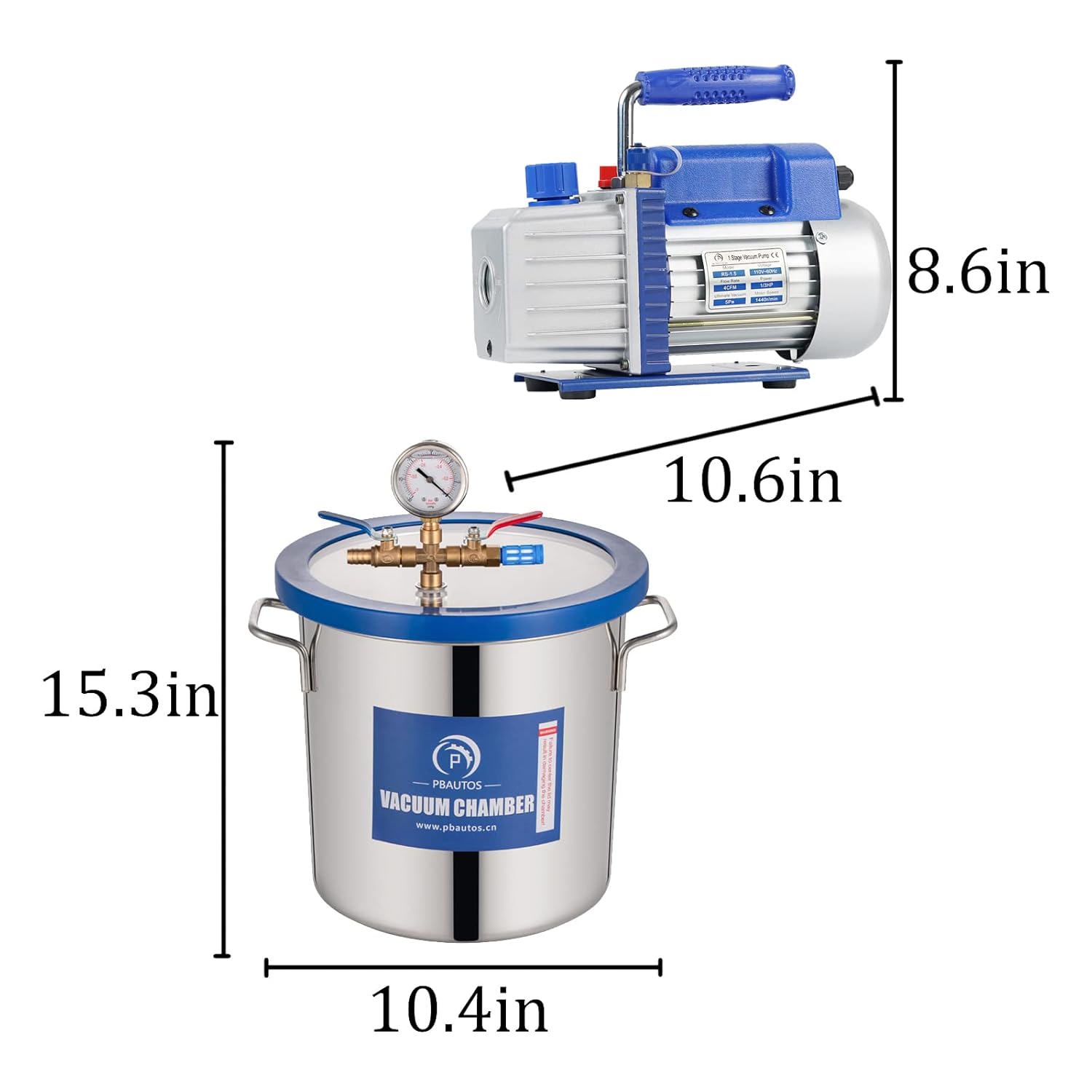

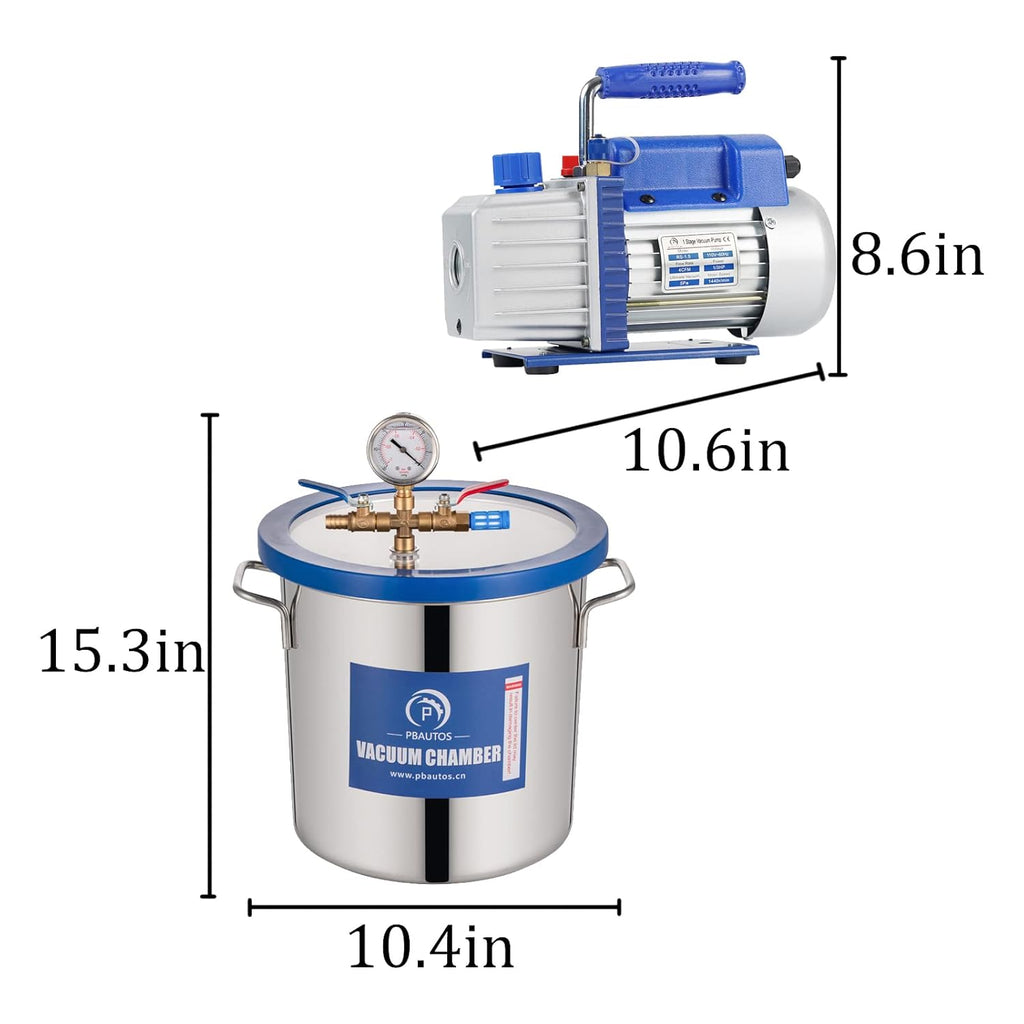

Dimension(mm): 275*115*240

Weight(KG): 7.5KG

Material: Alloy Aluminum Shell + Copper + Stainless Steel

Pumping Rate: 4 CFM

Rotating Speed: 1720 RPM

Power (HP): 1/3

Oil Capacity(ml): 225mL

Ultimate Vacuum: 5PA/0.05Mbar

Max Operation Temperature: 160ºF

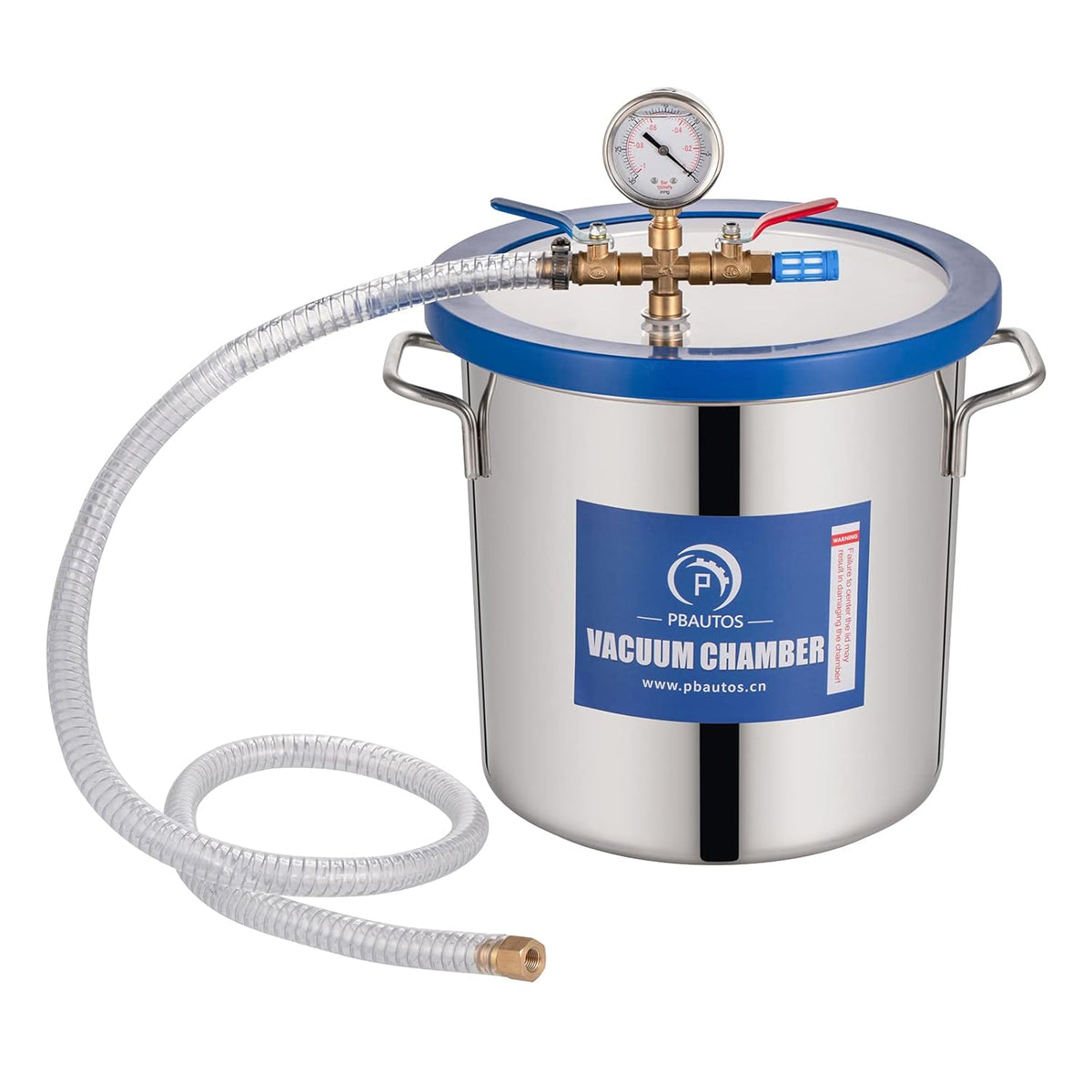

*Vacuum Chamber Specification:

Volume: 3 Gallon

Thickness of the Lid: 3/5"

3 Gallon Stainless Steel Vacuum Chamber with 4CFM 1/3HP Single Stage Vacuum Pump T490
