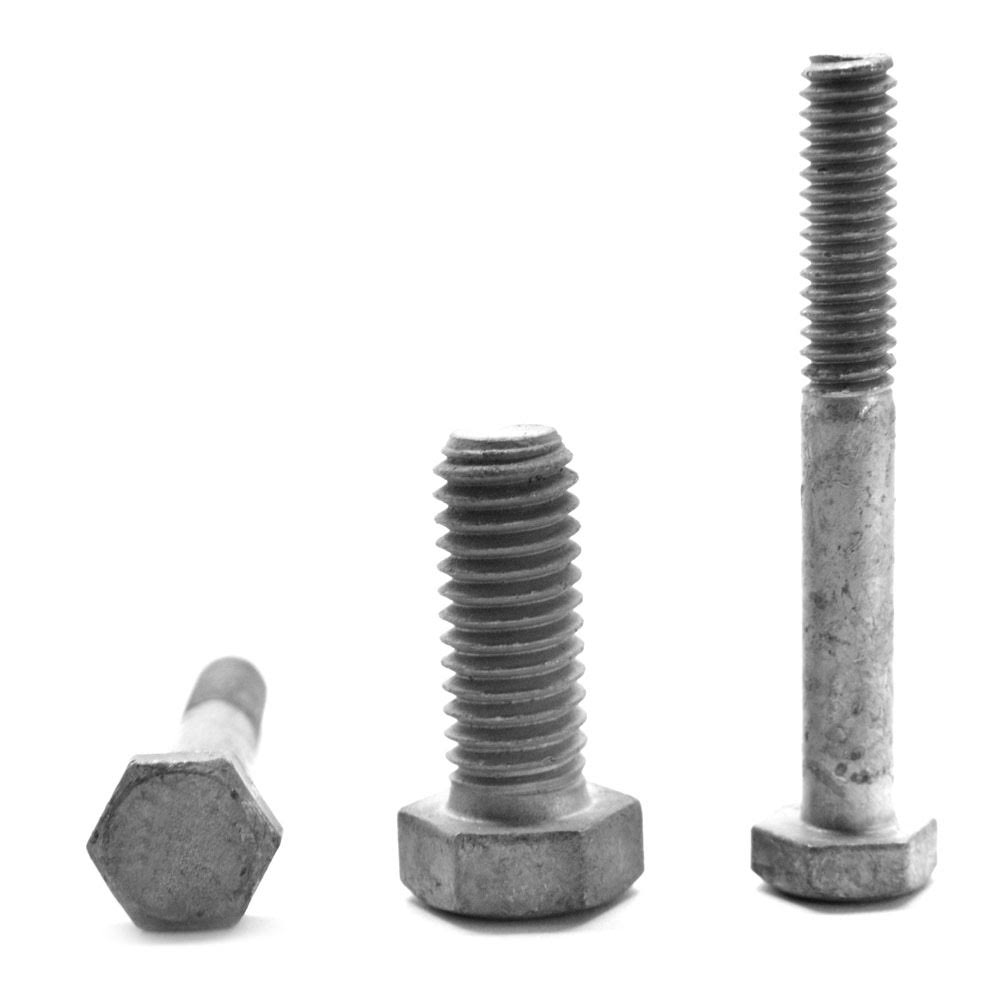

5/8x22-11 x 6x22 Coarse Thread Hex Bolt Low Carbon Steel Hot Dip Galvanized Z6409
Sale price
$24.95
Regular price $91.49
Skip to product information
Part #: 0000-128391. Buy as few as 37 pcs. Discounts on larger quantities. PRODUCT SPECIFICATIONS Part #: 0000-128391 Fastener Type: Hex Bolt Size Description: 5/8'-11 x 6' (PT) Diameter/Nominal Size: 5/8' Length: 6' Wrench Size/Across Flats: 15/16' (0.922-0.938') Width Across Corners: 1.051-1.083' Head Height: 25/64' (0.378-0.403') Thread Pitch: 11 Thread Pitch Type: Coarse Thread Direction: Right Thread Coverage: Partial System of Measurement: Inch Grade: A (2) Material: Low Carbon Steel Finish: Hot Dip Galvanized Head Type: Hex Drive Type: External Hex Standards Met: A307 Average Piece Weight: 0.5734200 lbs. Hexagonal heads and machine threads used with a nut or in a tapped hole; also known as or machine bolts. Hex bolts are similar to hex cap screws. What is the difference between a hex cap screw and a hex bolt? A hex cap screw has tighter tolerances on the body dimensions and features a chamfered end and a washer face under the bolt head. A hex cap screw is often called a finished hex bolt. Hex bolts have a flat end and lack the washer face under the head. Hex bolts may have an undersize body in longer lengths.
5/8x22-11 x 6x22 Coarse Thread Hex Bolt Low Carbon Steel Hot Dip Galvanized Z6409
Sale price
$24.95
Regular price $91.49
Shipping calculated at checkout.
