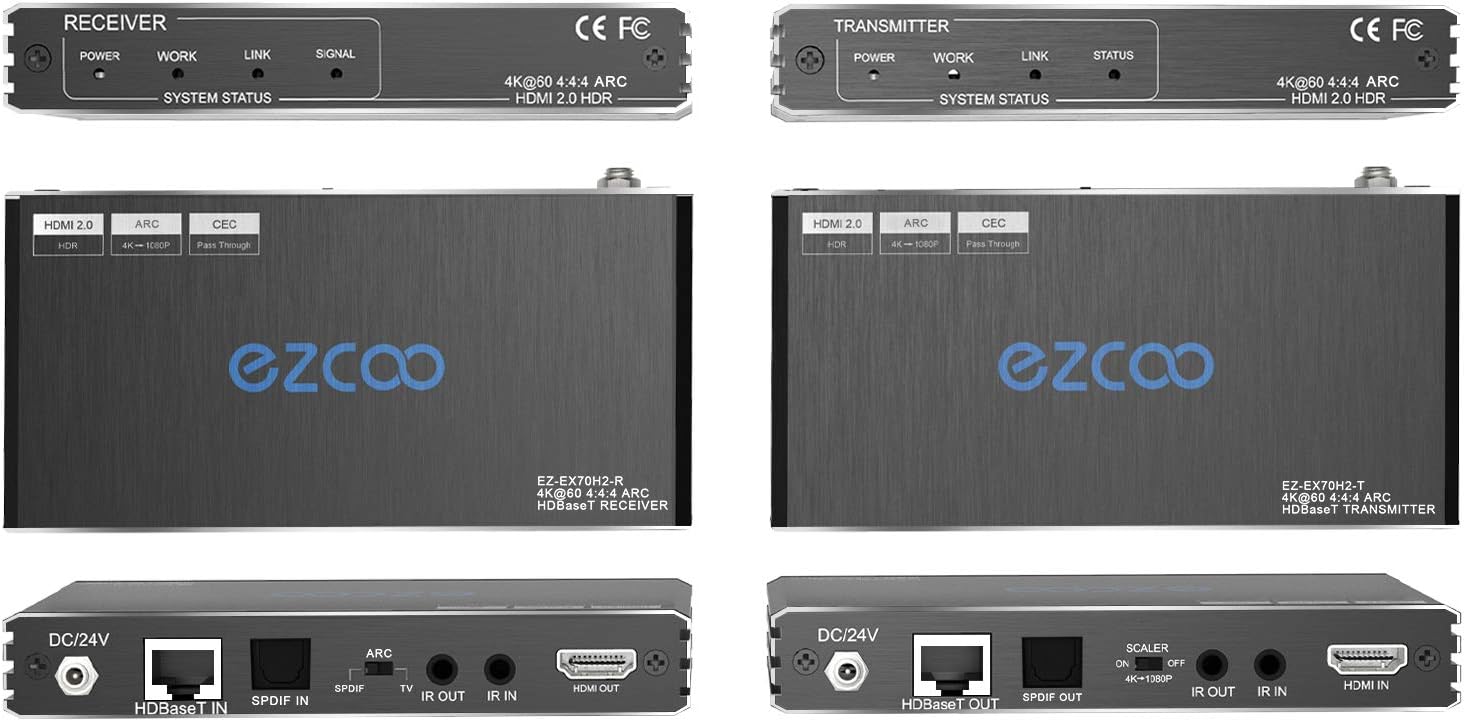

HDBaseT HDMI ARC Extender 4K 60Hz HDR10 18Gbps by Cat5e Cat6 SPDIF Toslink Bi-Directional PoE+IR+CEC 230ft 1080P 130ft 4K HDMI2.0 HDCP2.2 DTS:X 4K Down-Scale Slim Case F147128
Sale price
$17.95
Regular price $76.28
Skip to product information
- Uncompressed 4K60Hz 4:4:4 (8bit) up to 40m(130ft) or 70m (230ft) over Cat5e Cat6 Cat7 cable. Supports D-o-l-b-y TrueHD, DTS-HD Master, DTS: X, PCM7.1 audio. --- Turn OFF SCALER if play 4K TV. To get 4K HQ picture, Pls set Source to 4K, Power on 4K TV firstly, then connect HDBaseT Extender TX RX.

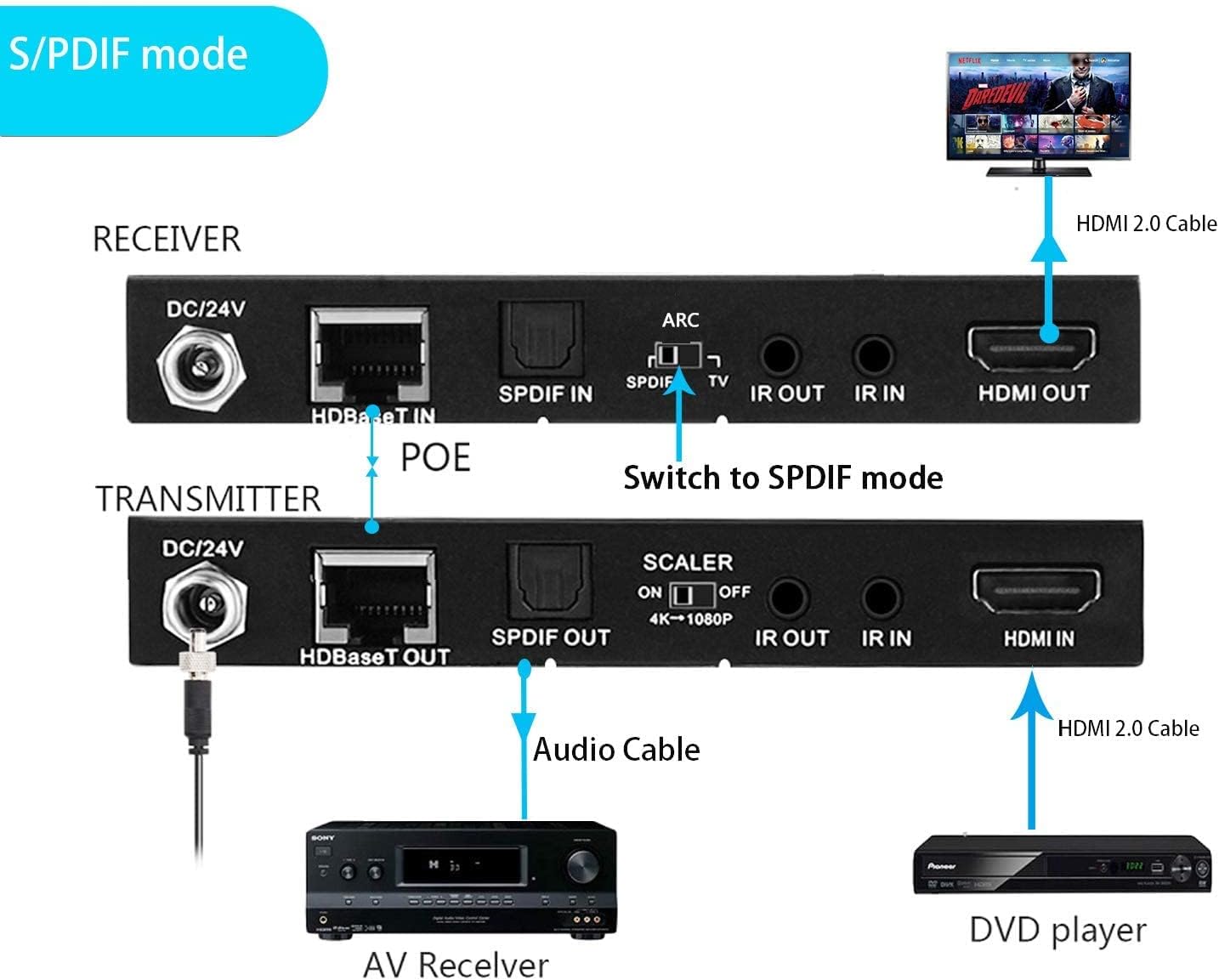

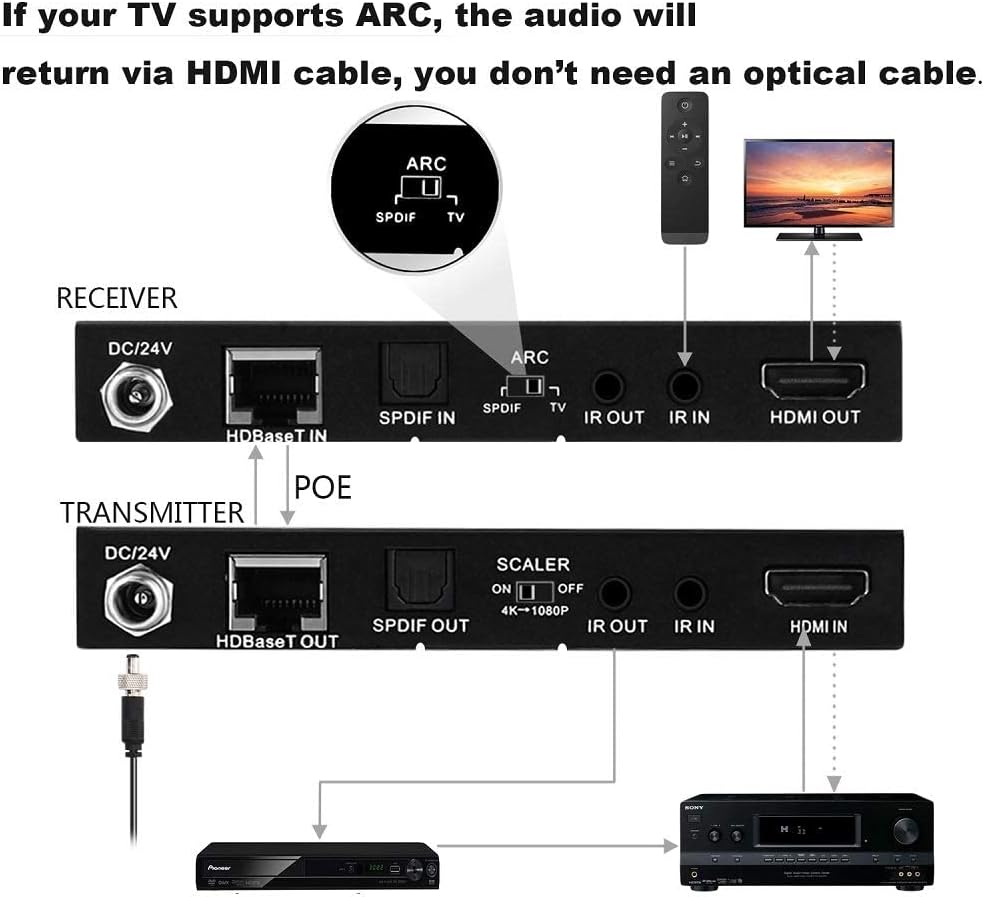

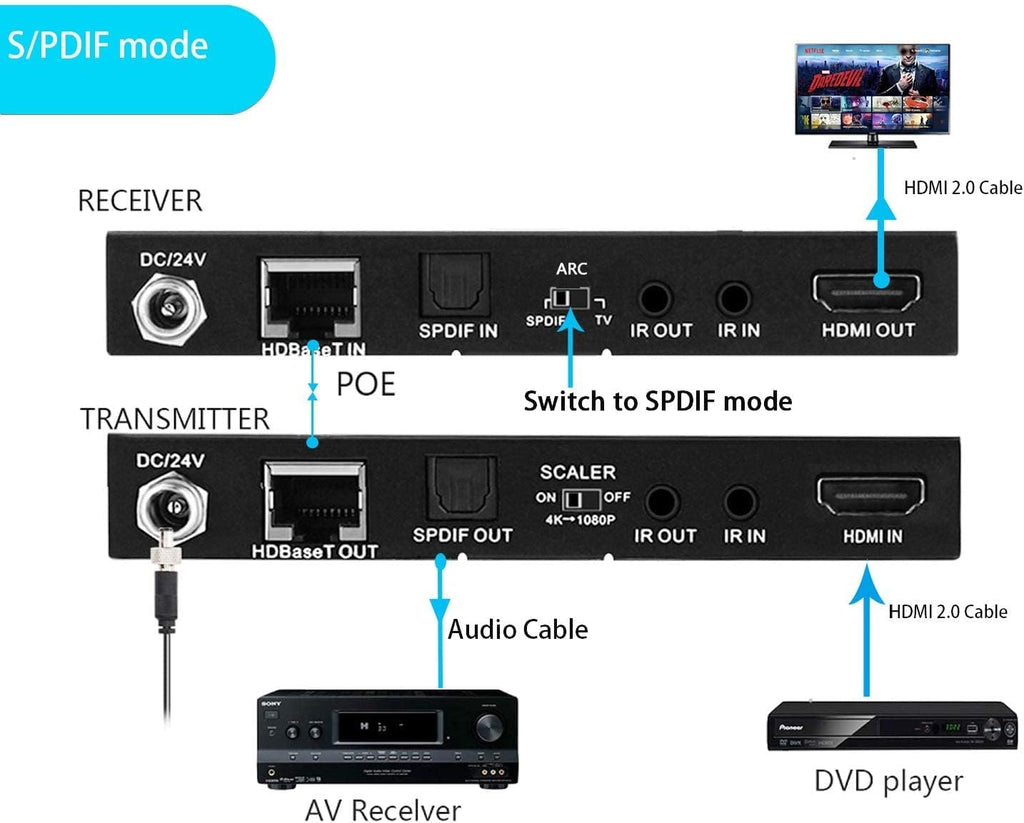

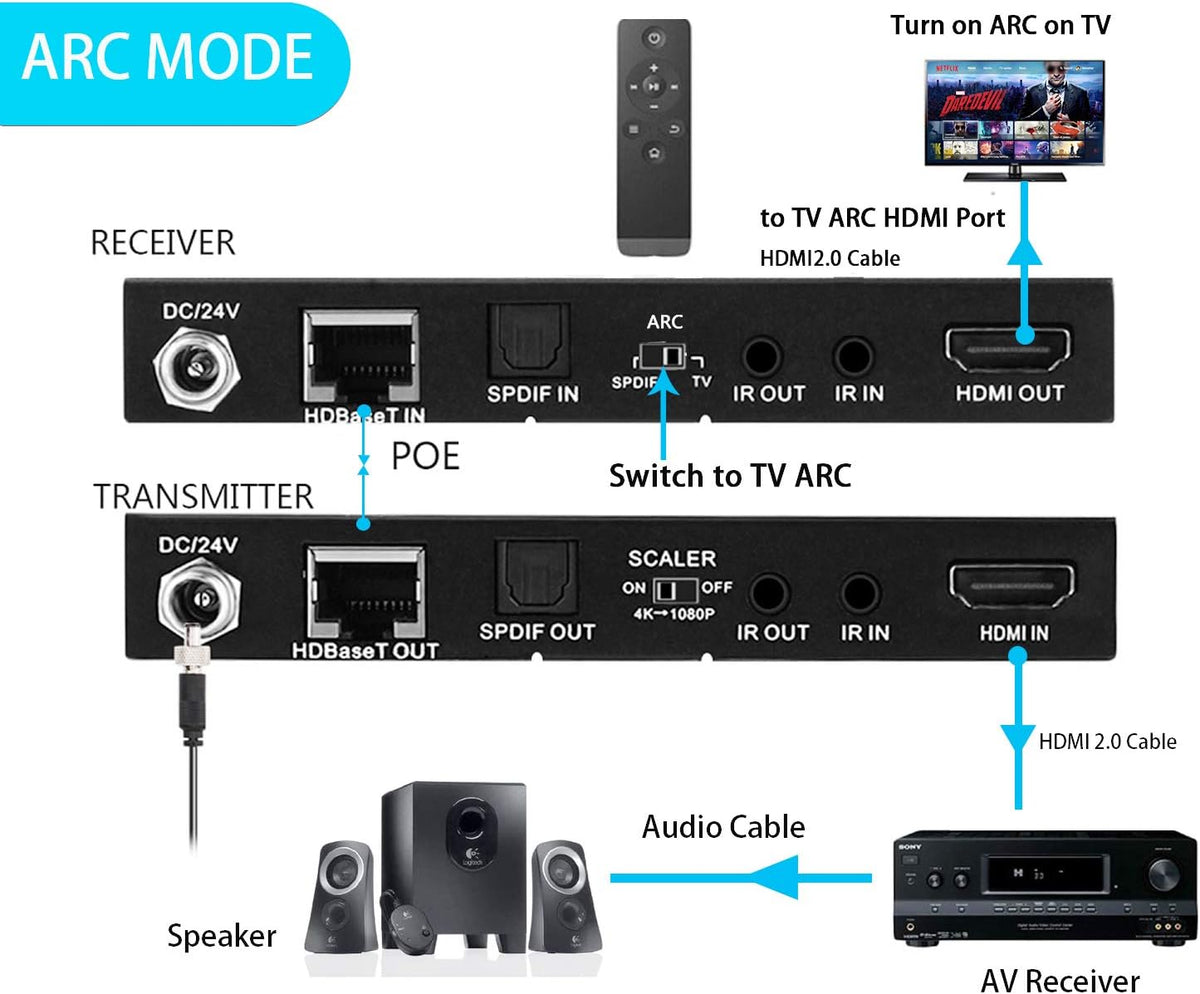

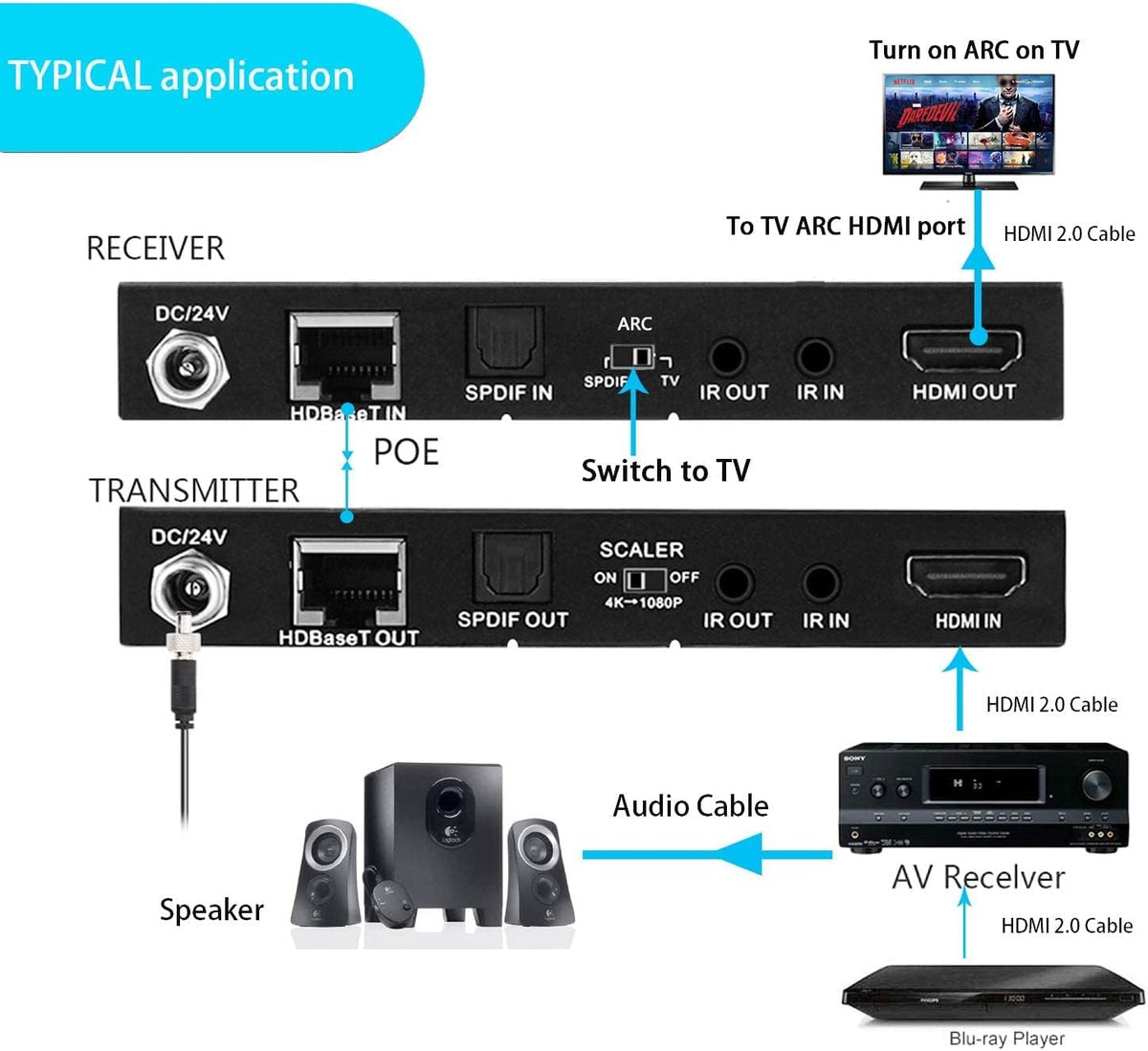

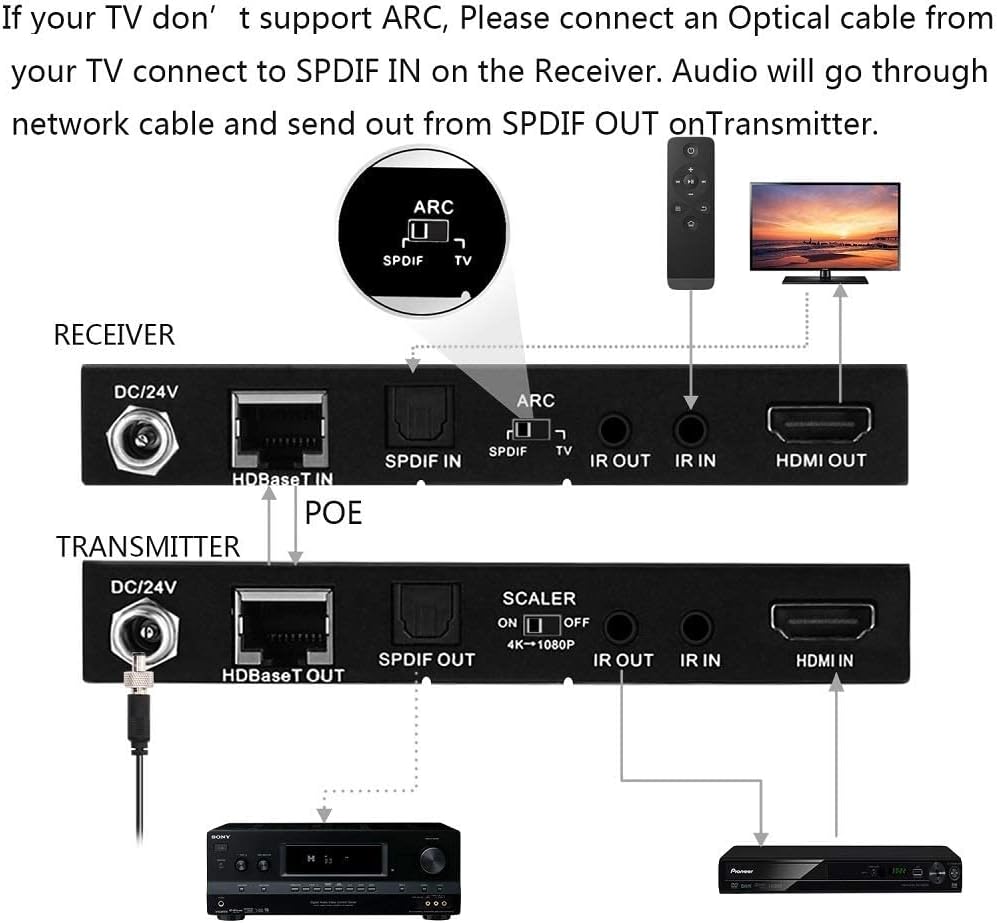

- Set ARC on Extender Receiver (TV ARC or SPDIF) --- Switch to TV mode, turn on TV ARC function, connect HDMI OUT to TV ARC port and AVR ARC port --- ARC support 5.1ch audio only, NOT ATMOS, pls ensure HDMI source, TV, AVR support 5.1ch firstly. EZCOO HDBaseT HDMI ARC extender just pass through audio, not amplify. --- If TV no ARC, pls switch to SPDIF mode, using optical cable return audio to AVR. Pls check left side connection photo well. NO eARC NO ATMOS

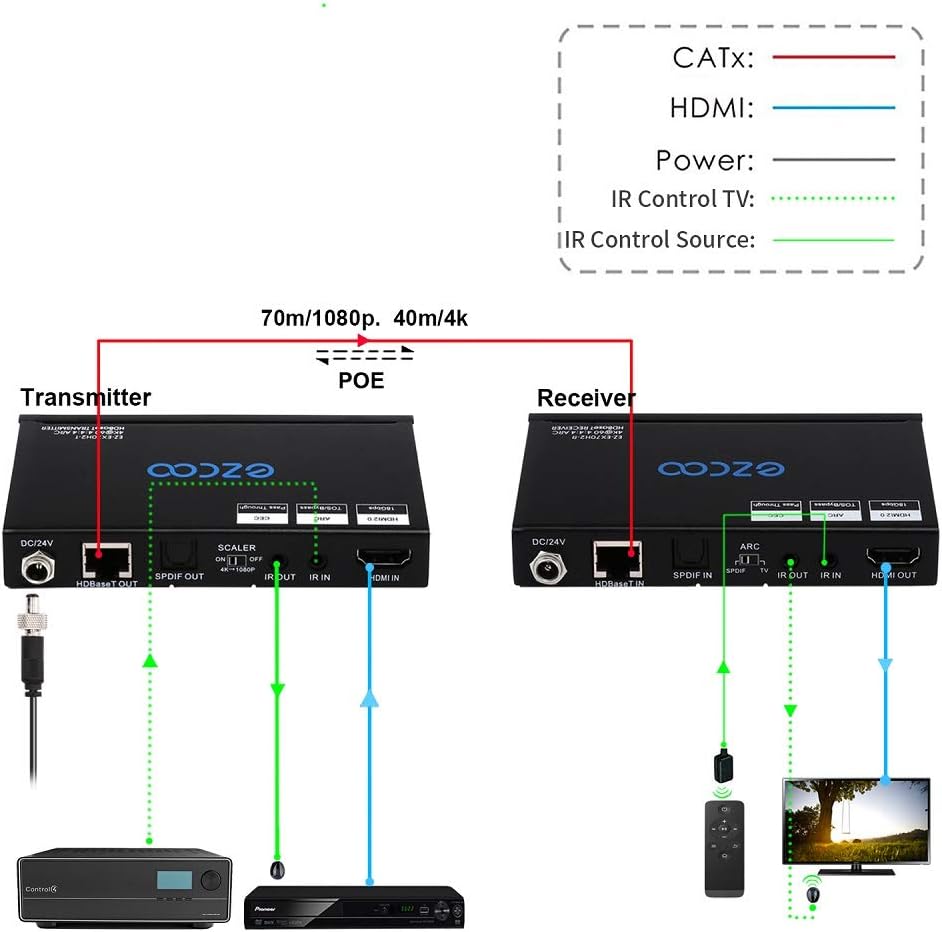

- - Only one power adapter is required by either extender transmitter or receiver. Bi-directional IR control both HDMI source, display. Supports CEC. Please ensure TV support CEC firstly. Connect TV CEC/ ARC HDMI port. NOTE: Ethernet port takes power by PoE, do not connect router.
- ezcoo HDBaseT HDMI extender ARC ethernet works well with HDMI 2.0 HDCP 2.2 devices, for Roku 4, Amazon Fire TV, Fire Stick, Xbox one S, Apple TV,PS3 PS4 Pro,Blu-ray DVD, cable satellite box, PC laptop, HD camera, HD DVR.
- Built-in ESD protect audio return channel HDMI BALUN 4K for safety usage. Ultra slim 0.7inch case low heat, stable performance. For cheaper 4K60 444 HDMI Extender, pls check B07WC678VT. For HDMI Extender 4K60 4:2:0, pls check B07W4TD5QH
HDBaseT HDMI ARC Extender 4K 60Hz HDR10 18Gbps by Cat5e Cat6 SPDIF Toslink Bi-Directional PoE+IR+CEC 230ft 1080P 130ft 4K HDMI2.0 HDCP2.2 DTS:X 4K Down-Scale Slim Case F147128
Sale price
$17.95
Regular price $76.28
Shipping calculated at checkout.
- Uncompressed 4K60Hz 4:4:4 (8bit) up to 40m(130ft) or 70m (230ft) over Cat5e Cat6 Cat7 cable. Supports D-o-l-b-y TrueHD, DTS-HD Master, DTS: X, PCM7.1 audio. --- Turn OFF SCALER if play 4K TV. To get 4K HQ picture, Pls set Source to 4K, Power on 4K TV firstly, then connect HDBaseT Extender TX RX.
- Set ARC on Extender Receiver (TV ARC or SPDIF) --- Switch to TV mode, turn on TV ARC function, connect HDMI OUT to TV ARC port and AVR ARC port --- ARC support 5.1ch audio only, NOT ATMOS, pls ensure HDMI source, TV, AVR support 5.1ch firstly. EZCOO HDBaseT HDMI ARC extender just pass through audio, not amplify. --- If TV no ARC, pls switch to SPDIF mode, using optical cable return audio to AVR. Pls check left side connection photo well. NO eARC NO ATMOS
- - Only one power adapter is required by either extender transmitter or receiver. Bi-directional IR control both HDMI source, display. Supports CEC. Please ensure TV support CEC firstly. Connect TV CEC/ ARC HDMI port. NOTE: Ethernet port takes power by PoE, do not connect router.
- ezcoo HDBaseT HDMI extender ARC ethernet works well with HDMI 2.0 HDCP 2.2 devices, for Roku 4, Amazon Fire TV, Fire Stick, Xbox one S, Apple TV,PS3 PS4 Pro,Blu-ray DVD, cable satellite box, PC laptop, HD camera, HD DVR.
- Built-in ESD protect audio return channel HDMI BALUN 4K for safety usage. Ultra slim 0.7inch case low heat, stable performance. For cheaper 4K60 444 HDMI Extender, pls check B07WC678VT. For HDMI Extender 4K60 4:2:0, pls check B07W4TD5QH
| EX70H2 ARC 4K 60Hz 4:4:4 40m | EX70H2A EDID 2K/4K/COPY 4K 60Hz 4:4:4 40m | EX70H2L 4K 60Hz 4:4:4 40m Value for Money | |
|---|---|---|---|
| HDMI 2.0 HDCP 2.2 | |||
| 4K 60Hz 4:4:4 8-bit, HDR10 | |||
| 1080P D-o-l-b-y Vision | |||
| HDMI Down Scaler | X | ||
| 1080P 60Hz to 230ft (70m) | |||
| 4K 60Hz to 130ft (40m) | |||
| Bi-directional PoE+IR+RS232 | Bi-directional PoE+IR | Bi-directional PoE+IR | |
| CEC | |||
| ARC (audio return channel) | X | X | |
| The Slimmest Design, Mini size |
